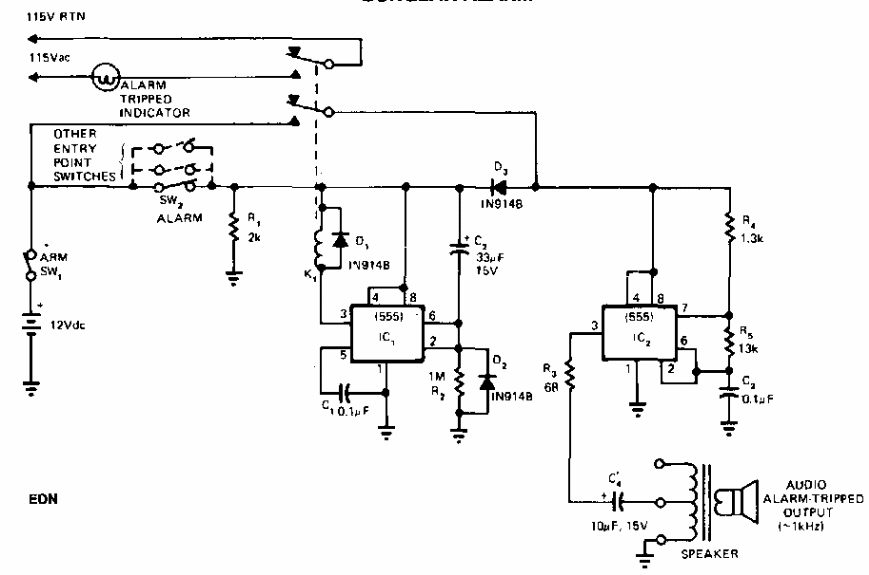

This alarm with the 555 integrated circuit is from an EDN from the 90s. The circuit directly triggers an audible warning that is made around an astonishing 555. The circuit can operate at 12 V according to the voltage of the relay used.
