Automatic night light (CB6860E)

Details
Written by: Newton C. Braga

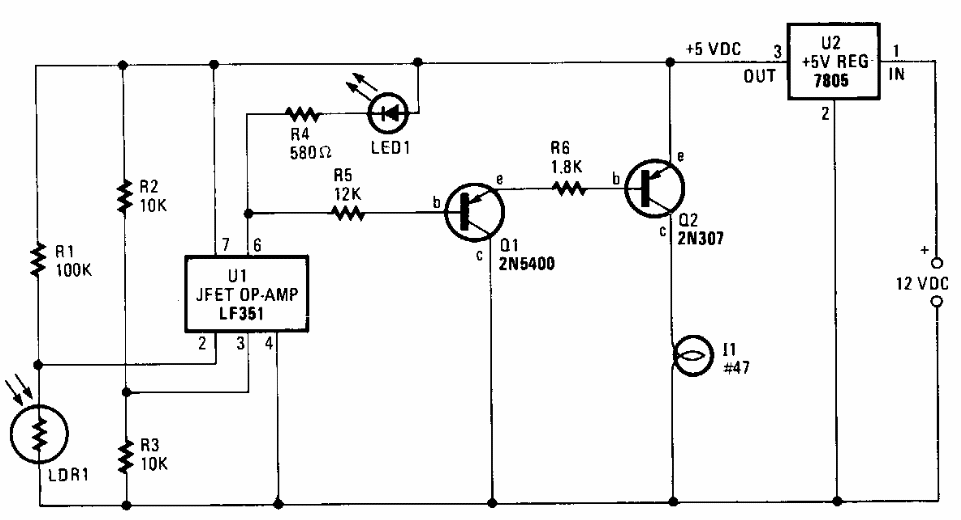

     Found in an 80's Hands On Electronics, this circuit turns on a light when it gets dark and goes out when it gets dark. The circuit can be adapted to use high-brightness white LEDs.




| Clique na imagem para ampliar |
