Pulsing brake light (CB7250E)

Details
Written by: Newton C. Braga

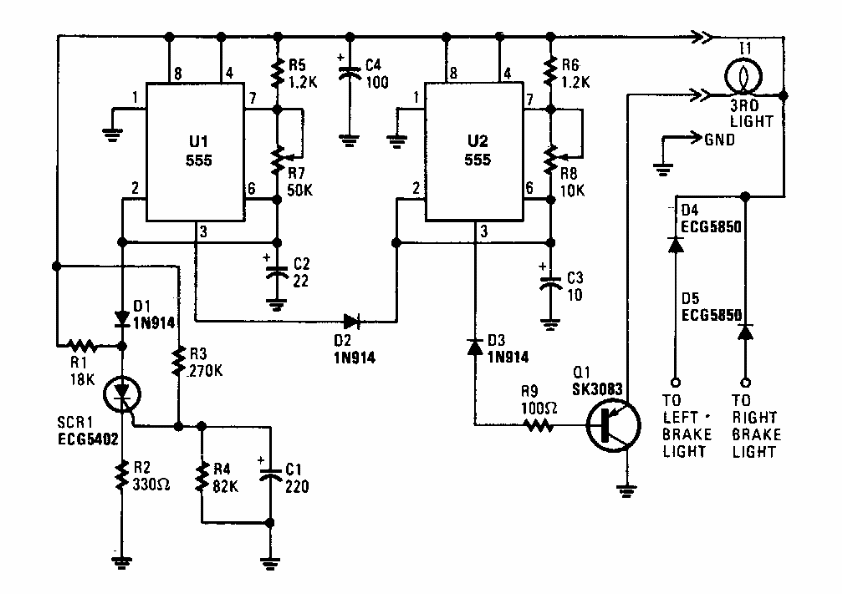

     This circuit was obtained in a Hobbyst Handbook from 1990. The circuit can be easily assembled since the SCR can be a TIC106 and the transistor a 2N30555.




| Clique na imagem para ampliar |
