Intercom gain remote control (CB6294E)

Details
Written by: Newton C. Braga

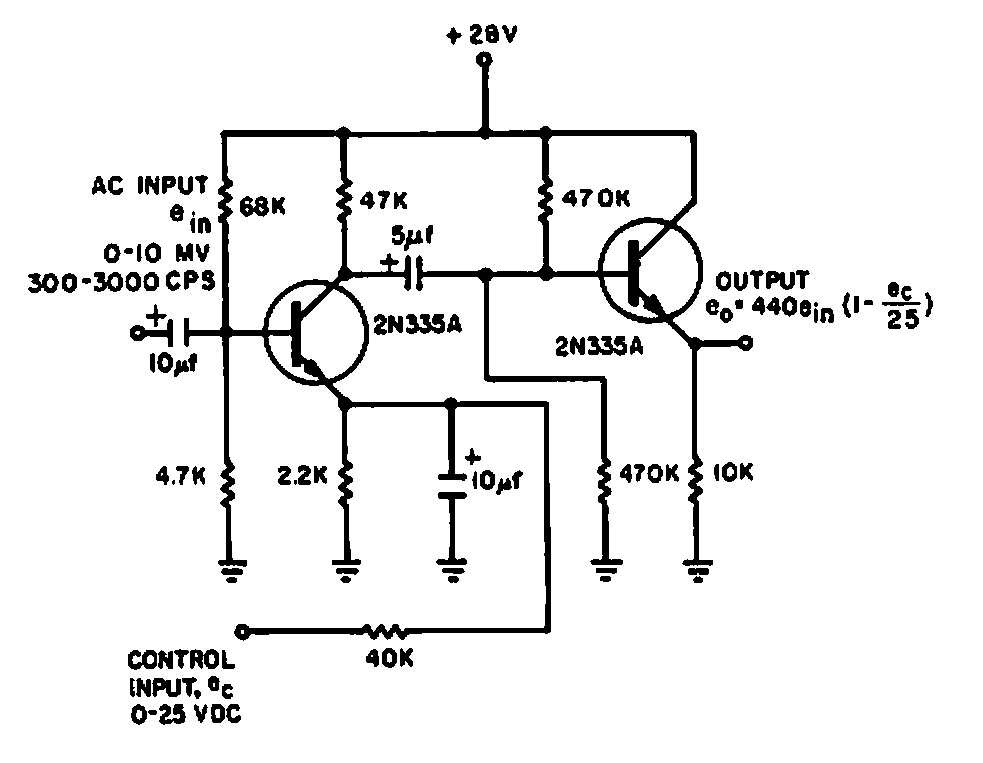

    This circuit was found in a 1964 Electronic Design. The circuit can be implemented with equivalent modern transistors. Note the high supply voltage.
