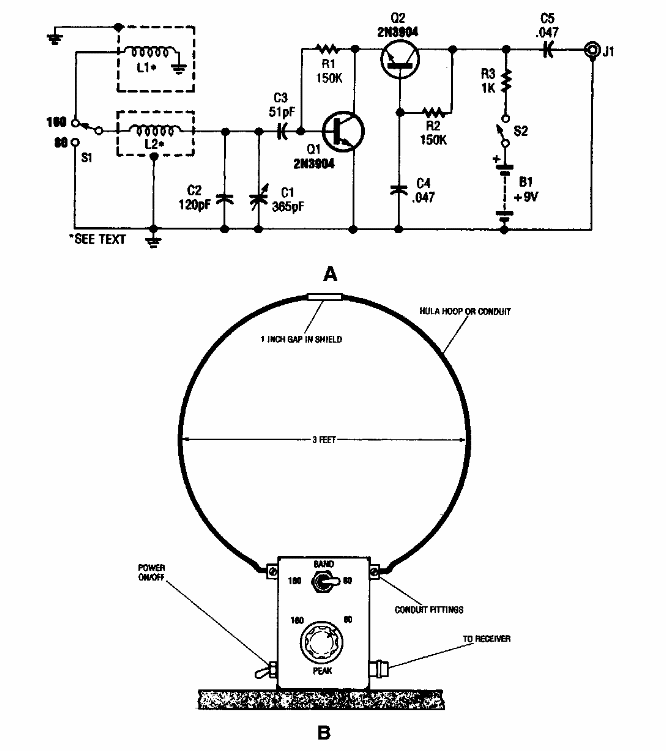

Found in Popular Electronics from the 1980s, this circuit can use more modern transistors such as the BF494 or BF495. The circuit operates in the ranges of radio amateurs of 160 and 80-meter and can also be used in the medium wave range.
| Clique na imagem para ampliar |
