Speed regulator for DC motors (CB7290E)

Details: Written by: Newton C. Braga

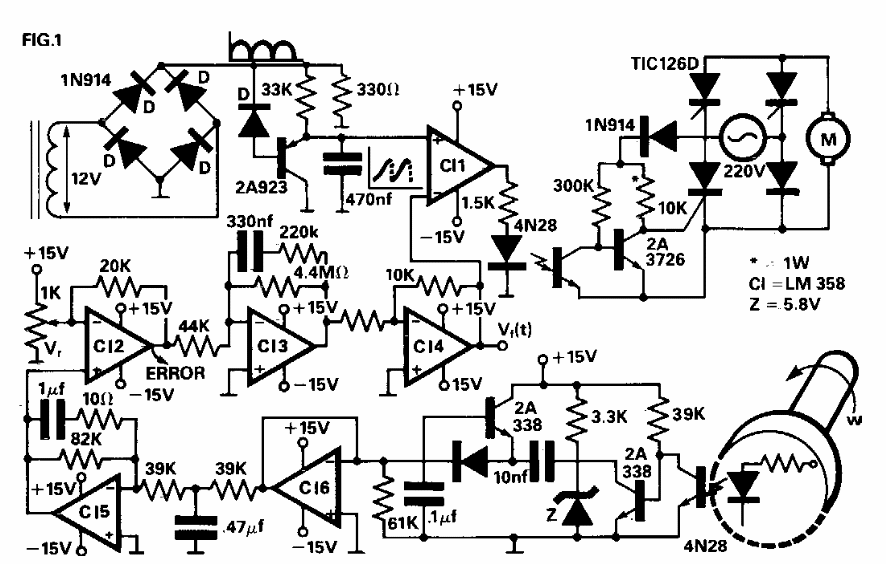

Found in an Electronic Engineering from the 80's, this circuit makes use of components of the time. The circuit can be implemented with modern equivalent components.
