FET Bridge Rectifier (CB6404E)

Details
Written by: Newton C. Braga

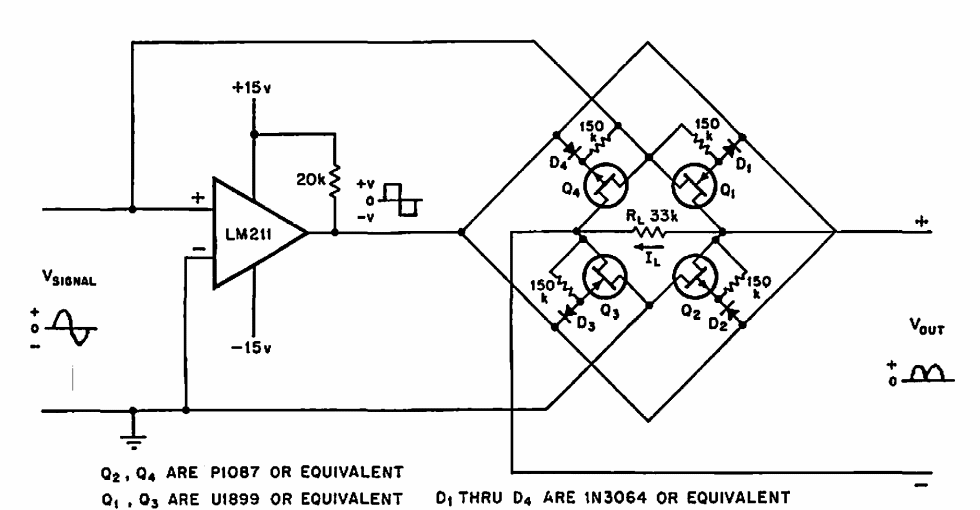

    This circuit was found in a 1970 American publication. The FETs are power types according to the desired output current. The operational can be replaced for modern equivalents.
