Switch Lamp Driver (CB6455E)

Details
Written by: Newton C. Braga

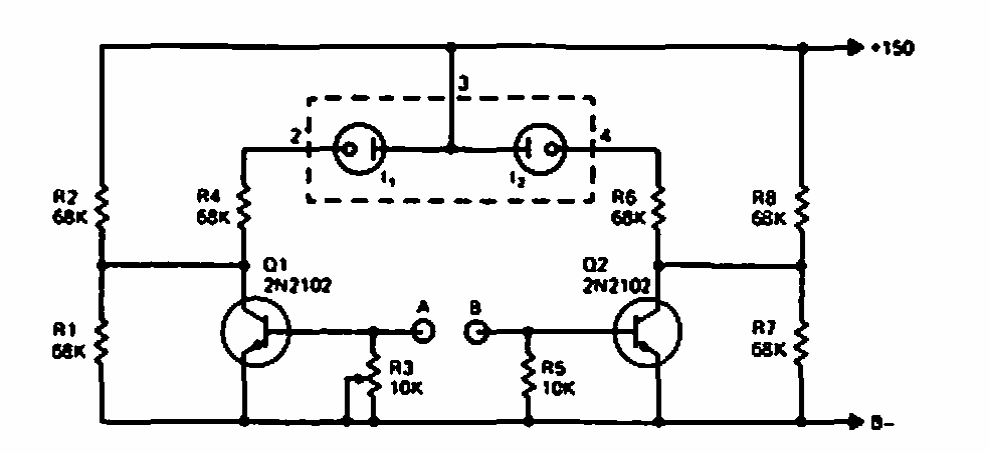

     This circuit was found in an old Hewlett Packard publication. Its purpose is to activate neon indicator lamps with signals from a switching circuit.
