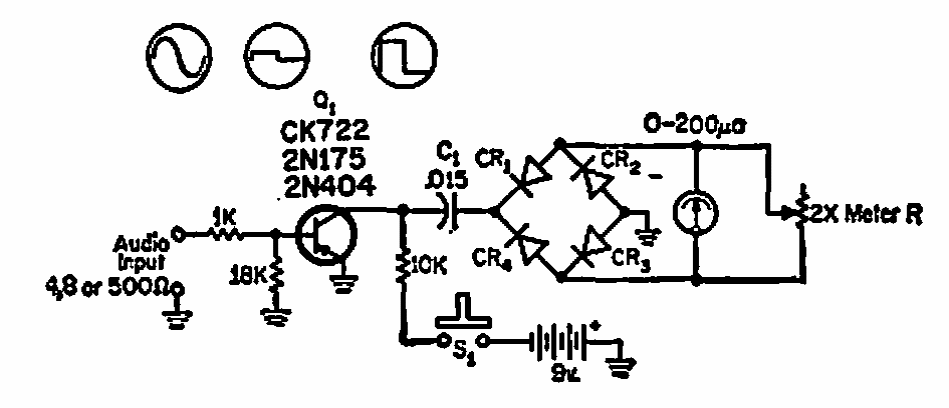

This circuit for frequencies of 20 to 2 kHz was obtained in English documentation from 1966. The transistor can be any general purpose and powered by batteries.
| Clique na imagem para ampliar |
Analog frequency meter (CB6901E)
- Details
- Written by: Newton C. Braga
