Infrared detector (CB7019E)

Details
Written by: Newton C. Braga

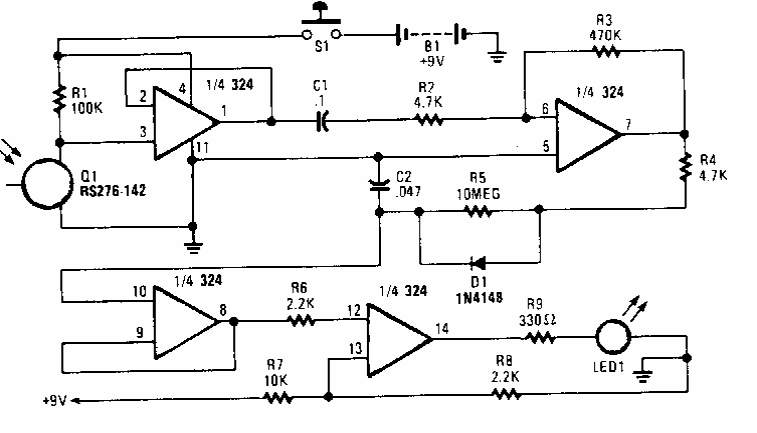

     Found in Popular Electronics from the 90s, this circuit detects modulated infrared radiation and serves as a test for remote controls. Infrared sensors equivalent to the one indicated can be used.
