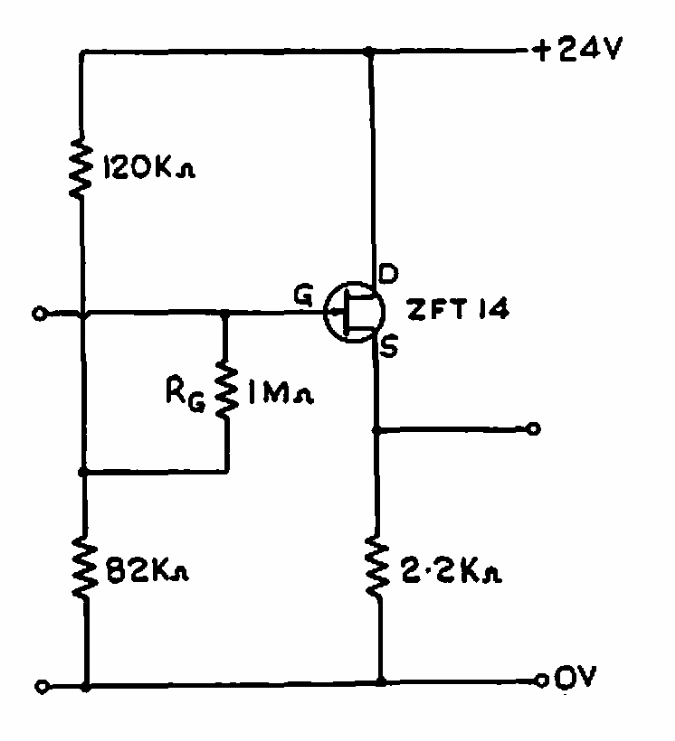

Source Follower (CB6153E)

This stage for JFETs was found in a 1965 US publication, but is valid for modern components.
