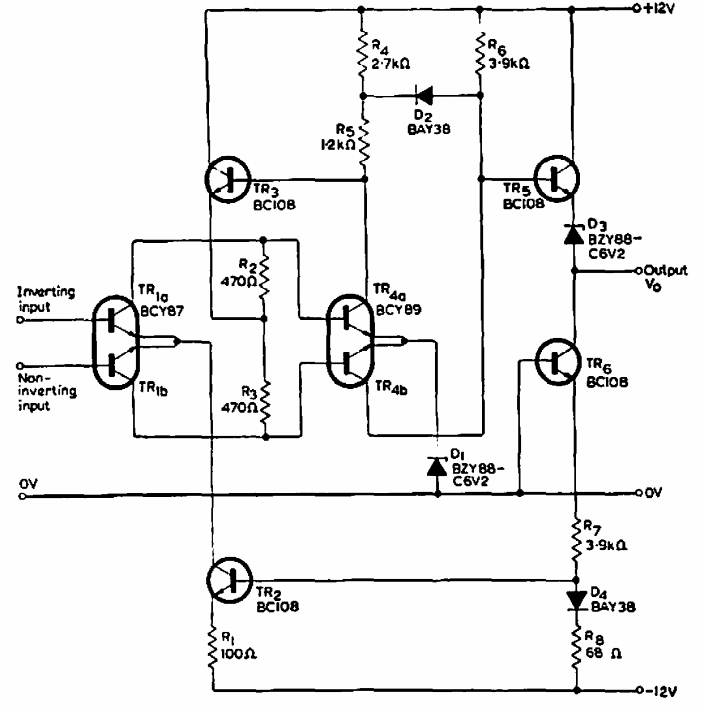

Comparator with Transistors (CB6550E)

Details: Written by: Newton C. Braga

This circuit was obtained from a Philips documentation from 1968. The transistors can be replaced with equivalents, only with care so that the doubles are exchanged for matched pairs.
