PWM speed control (CB7173E)

Details
Written by: Newton C. Braga

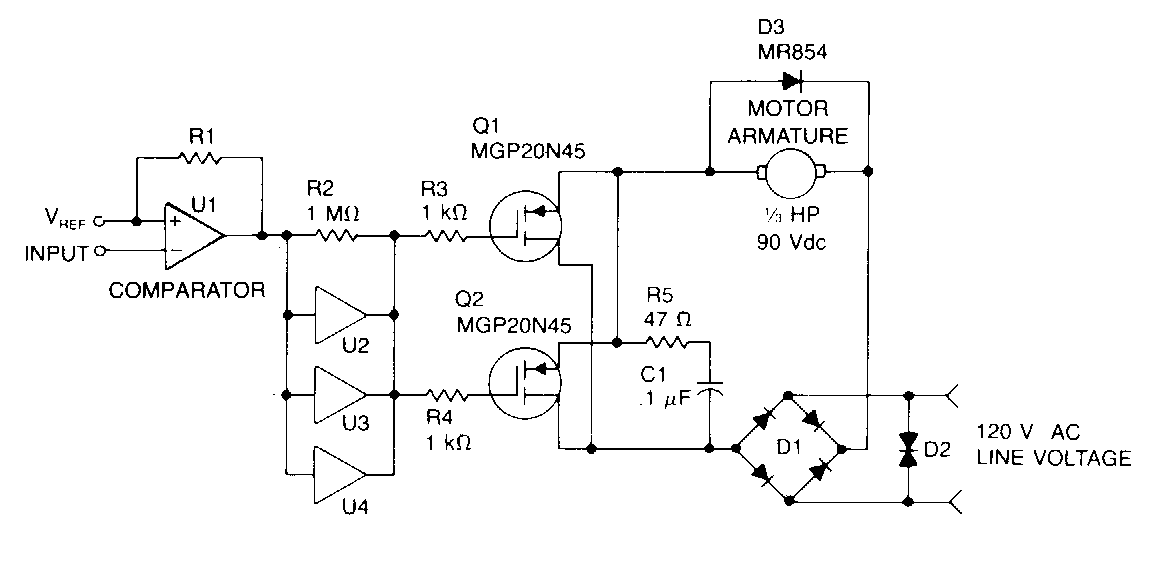

    Suggested by Motorola documentation from the 1980s, this circuit can be implemented with equivalent power MOSFETs. The type depends on the current of the controlled motor, as well as the diodes.




| Clique na imagem para ampliar |
