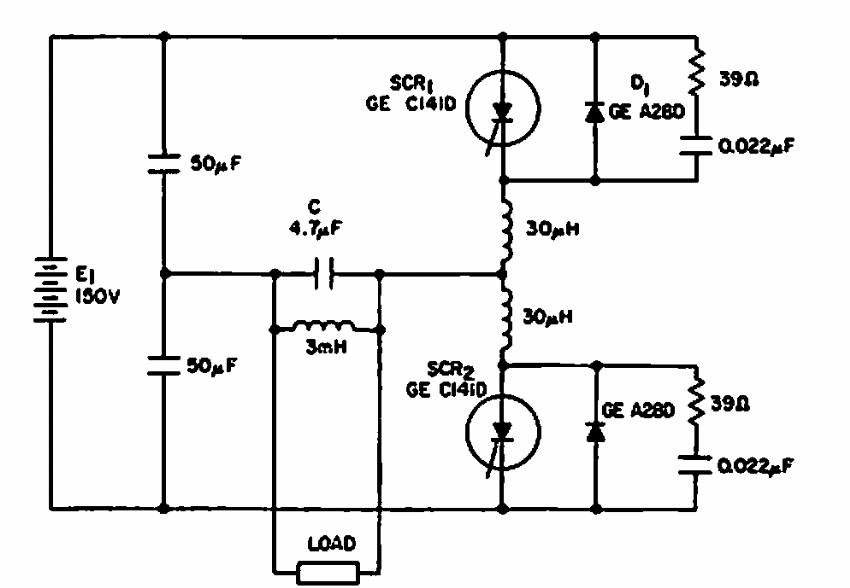

This circuit was found in the 1967 RCA SCR manual. The circuit generates approximately 300 V at a frequency of 1 kHz. The components are from the era.
| Clique na imagem para ampliar |
Class A inverter (CB7181E)
- Details
- Written by: Newton C. Braga
This circuit was found in the 1967 RCA SCR manual. The circuit generates approximately 300 V at a frequency of 1 kHz. The components are from the era.
