60 W Amplifier (CB6172E)

Details
Written by: Newton C. Braga

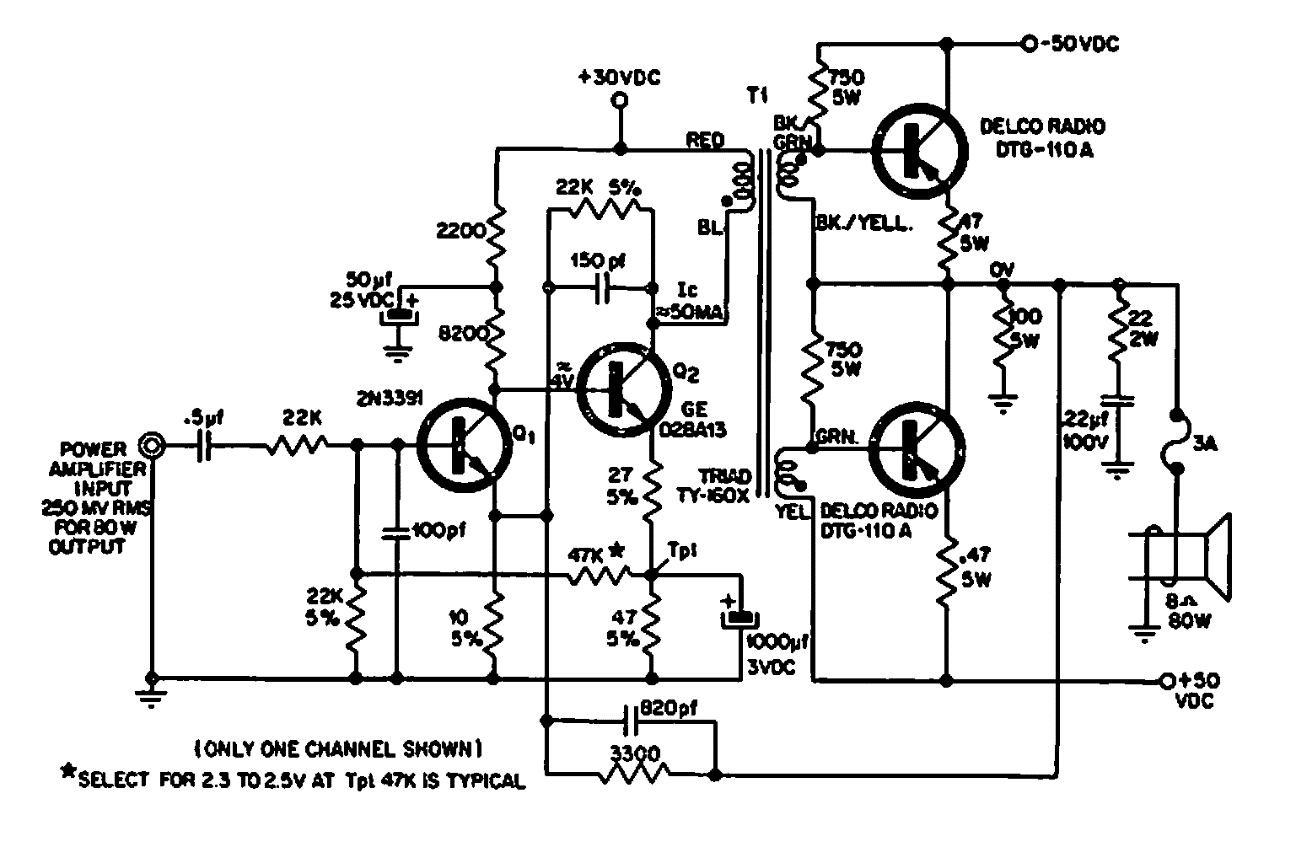

     This circuit is from Delco Radio found in a 1968’s documentation. The transistors are of the time and are not given information about the driver transformer. Note the high supply voltage.




| Clique na imagem para ampliar |
