6V Charger (CB6403E)

Details
Written by: Newton C. Braga

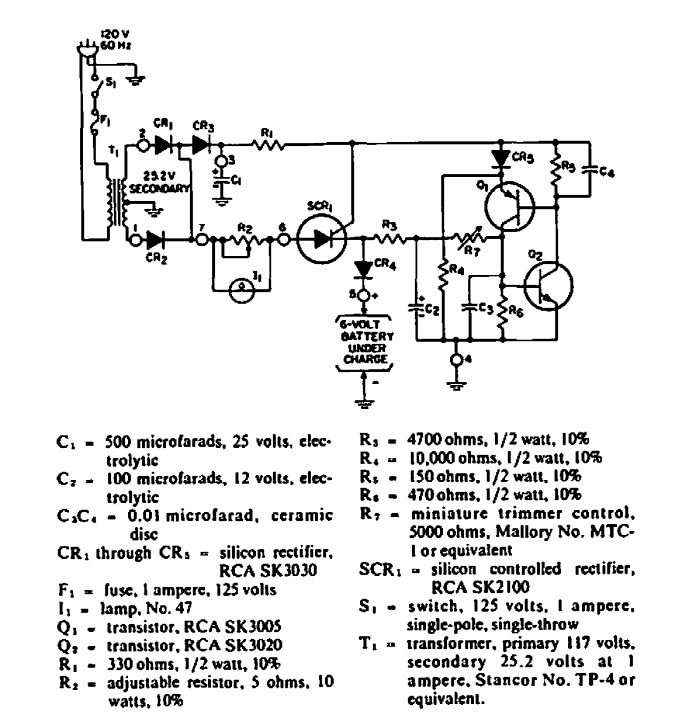

This circuit is from an old RCA documentation. The circuit sources a charging current of 1 A and is intended for the 6 V lead acid battery used in some cars of the era.
