Low Battery Detector (CB6515E)

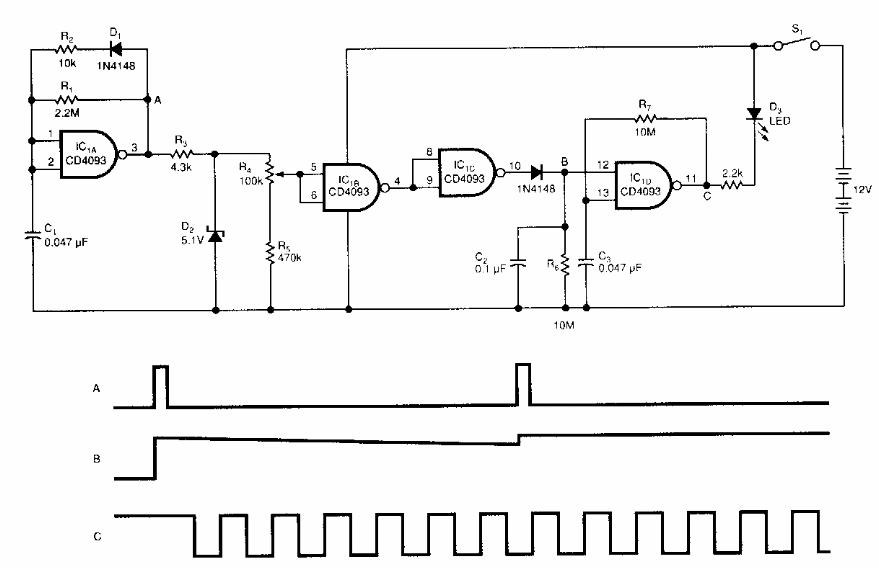

This circuit was found in an 80's EDN. The circuit uses a current common CMOS, the 4093 powering an LED. Trigger adjustment is done in a trimpot.
