Flashing night light (CB6799E)

Details
Written by: Newton C. Braga

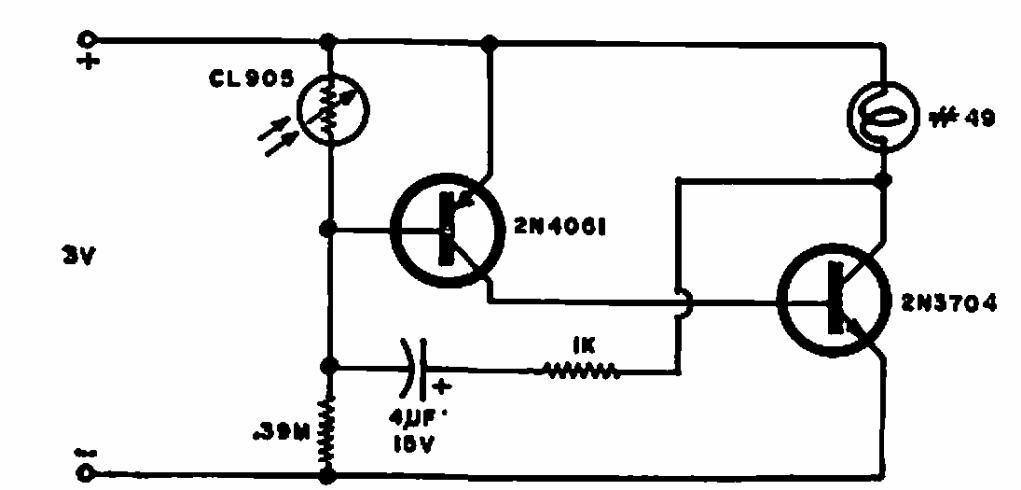

     This circuit was obtained in a Electronics World of 1968. The transistors can be equivalent as the BC558 for the PNP and the BD135 for the NPN powering lamps from 3 to 12 V according to the supply.




| Clique na imagem para ampliar |
