Active rectifier (CB7065E)

Details
Written by: Newton C. Braga

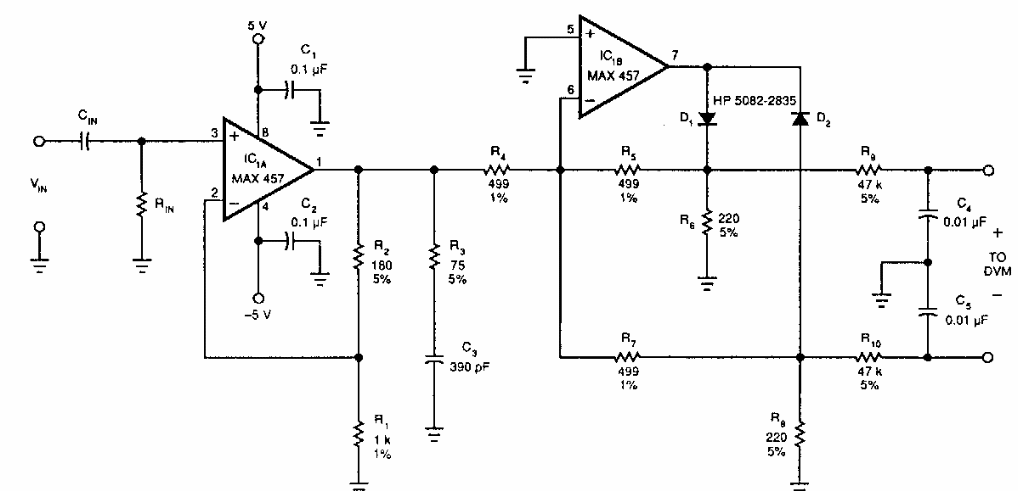

     This circuit supplies a continuous voltage at its output, which is the peak value of the alternating input voltage. The circuit is from a 90's EDN, making use of Maxim integrated circuits of the time.
