20 V AC x 50 W inverter (CB7120E)

Details
Written by: Newton C. Braga

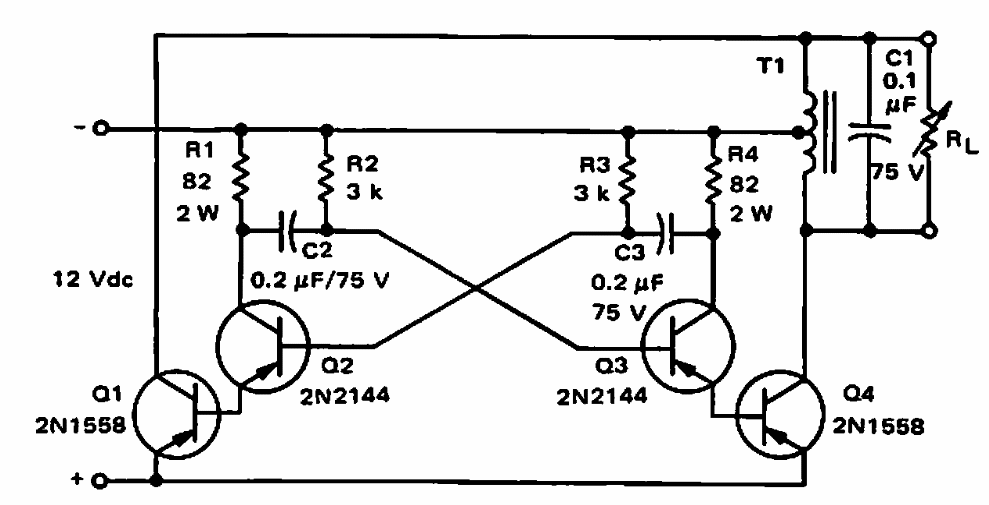

     Found in a 1968 Motorola documentation, this circuit operates at 1 kHz and can deliver 20 V from 12 V. Transistors support modern equivalents.




| Clique na imagem para ampliar |
