LED blinker (CB7195E)

Details
Written by: Newton C. Braga

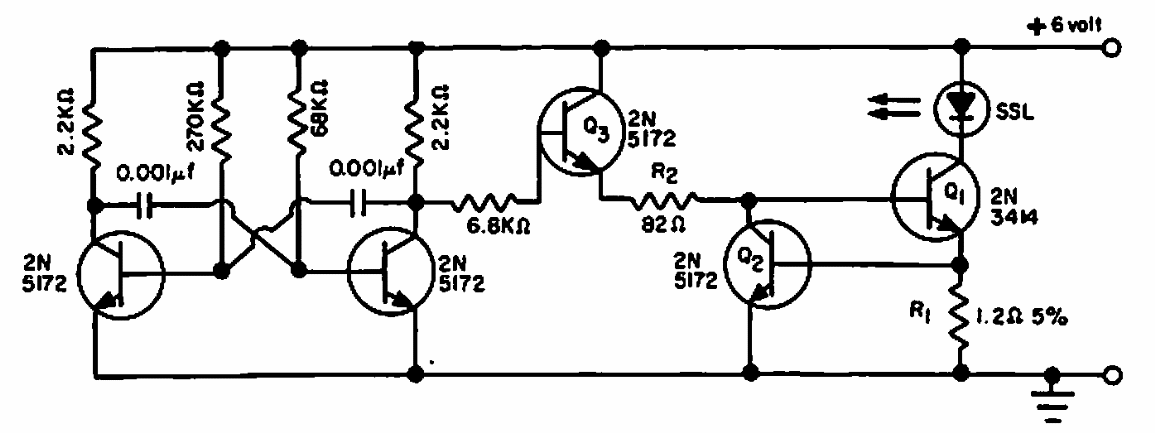

    This blinker for LEDs up to 500 mA was found in General Electric documentation from 1970. Transistors can be replaced with current equivalent types.
