Signal Identifier (CB6497E)

Details
Written by: Newton C. Braga

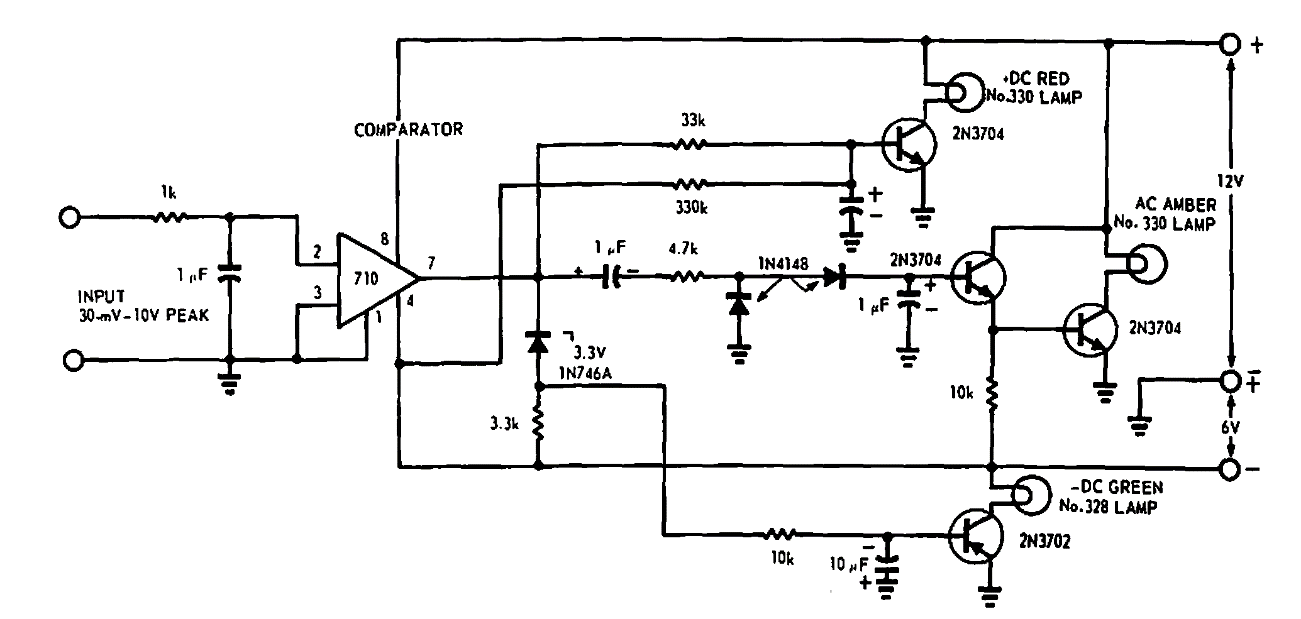

     This circuit identifies the polarity of DC signals and if the signal is AC. The circuit is from 1969 US EDN documentation. Operational may be equivalent.
