RRRRRTimed alarm for car (CB6776E)

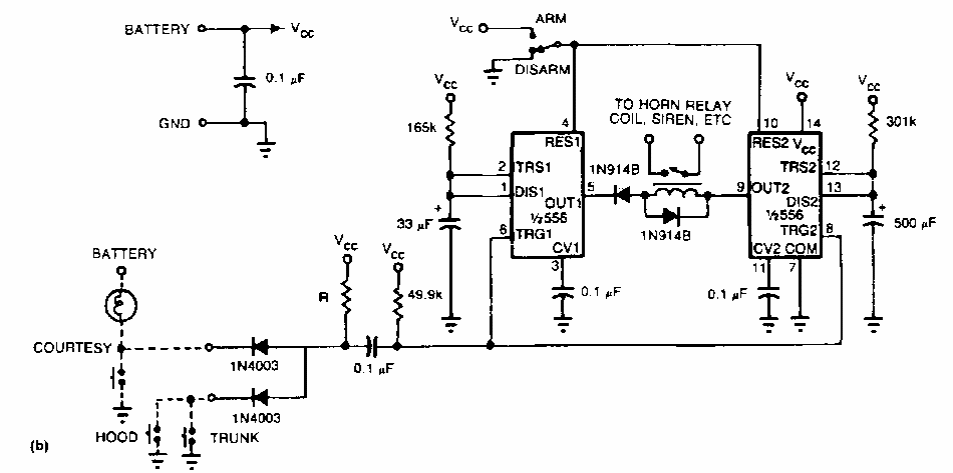

This circuit was found in an EDN from the 90s. The circuit employs a double 555 and uses the courtesy light switches of the car as sensors.

| Clique na imagem para ampliar |

Low Pass Second Order Filter 741 (CB25818E)
This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz,...
Pulse Compressor and Expander (CB6658E)
Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse....
Simple pulse extender (CB8921E)
This TTL pulse stretcher or stretcher was found in a 90's EDN. The time constant R x C1 determines...
