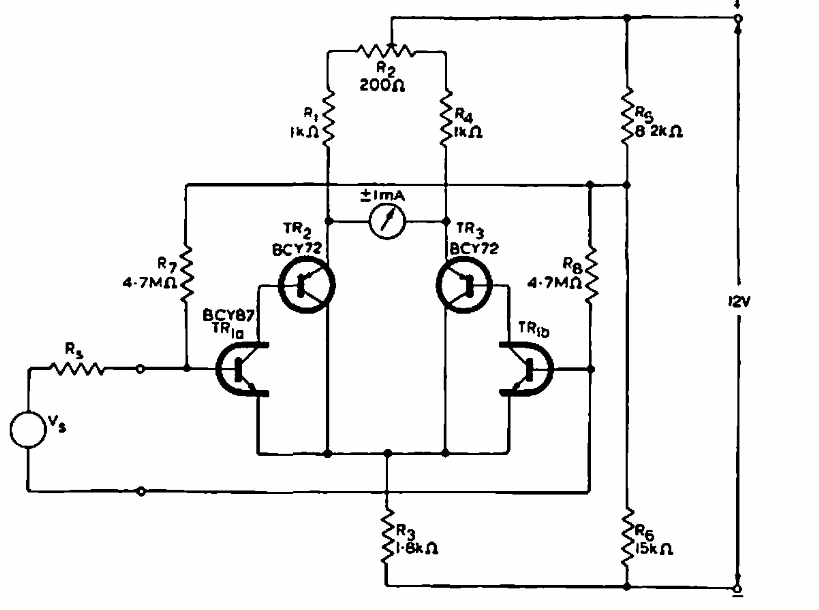

Found in a Philips' 1968 documentation, this circuit is slightly different from the previous one. The components are also from the era, and modern equivalents can be used.
| Clique na imagem para ampliar |
Amplifier for galvanometer 2 (CB7354E)
- Details
- Written by: Newton C. Braga
