12 to 35 V Converter (CB6575E)

Details
Written by: Newton C. Braga

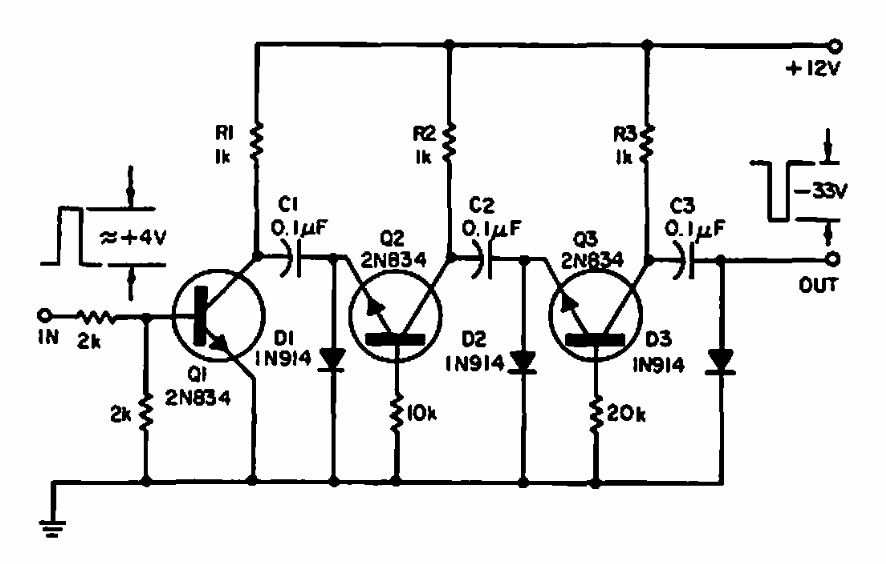

    This circuit is from a 1968 Electronic Design. The circuit uses transistors of the time that can be replaced with modern equivalents. More stages can be used to get higher tension.
