Distortion Free Pulse Delay (CB6661E)

Details
Written by: Newton C. Braga

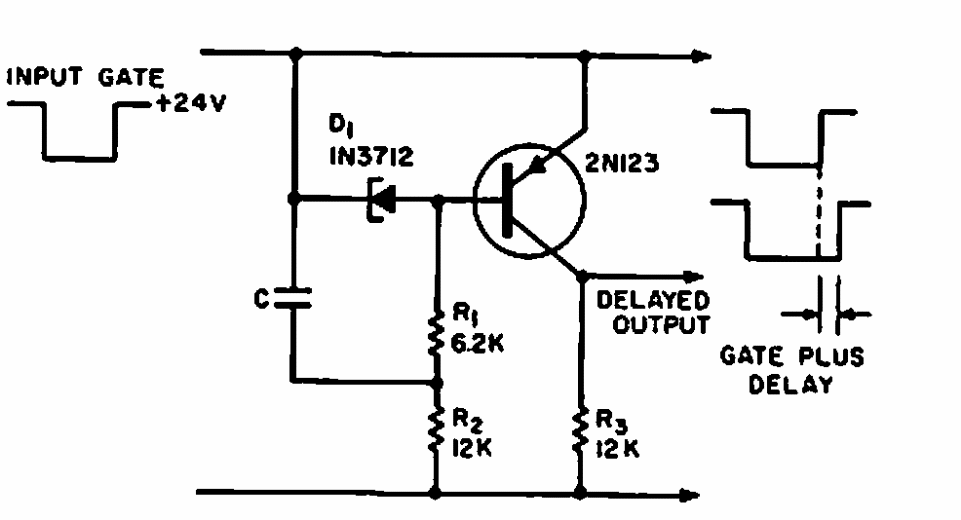

     This circuit of 1965 documentation makes use of a tunnel diode to retard a pulse without distortion. The components are from the era.
