Protection for operational amplifier (CB6976E)

Details: Written by: Newton C. Braga

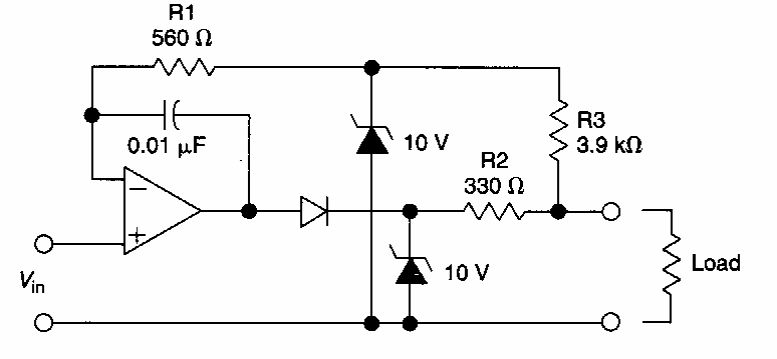

This circuit protects an operational amplifier with respect to both current and voltage. The circuit is from American documentation and can be applied to almost any operational.

| Clique na imagem para ampliar |
