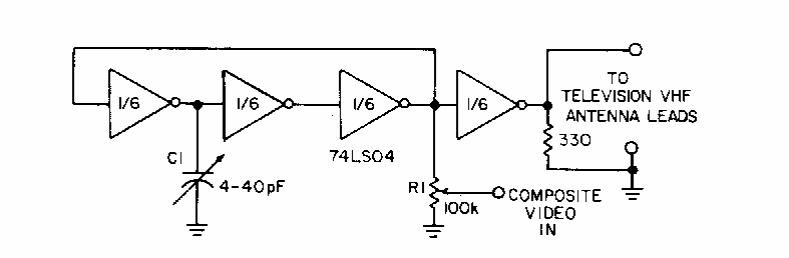

Data interface for analog TV (CB7171E)

This circuit was found in an old Electronic Design used to apply digital signals to an analog television.

| Clique na imagem para ampliar |
