Burglar Alarm (CB6330E)

Details
Written by: Newton C. Braga

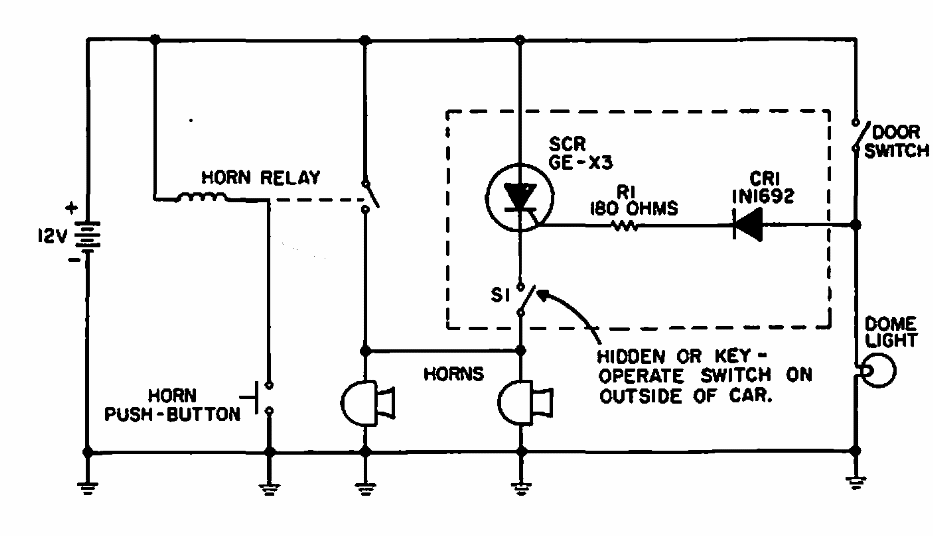

     This car alarm was found in a 1965 General Electric manual. The SCR can be commonly used with the TIC106 and sensors are placed in the doors using the existing courtesy light switches.




| Clique na imagem para ampliar |
