False alarm (CB6775E)

Details
Written by: Newton C. Braga

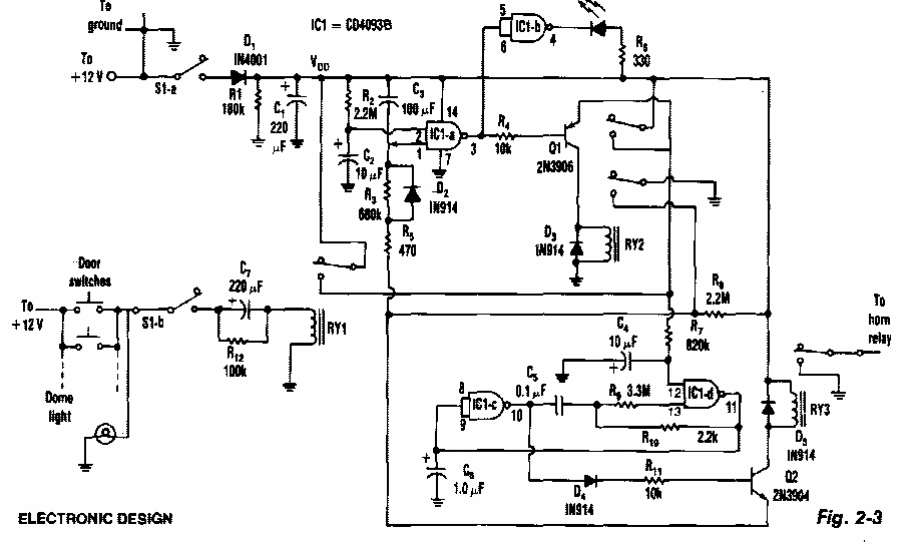

     This circuit was found in a 90’s Electronic Design. The circuit uses components that are still common in the market and indicated for use in the car.




| Clique na imagem para ampliar |
