Divider with SUS (CB6819E)

Details: Written by: Newton C. Braga

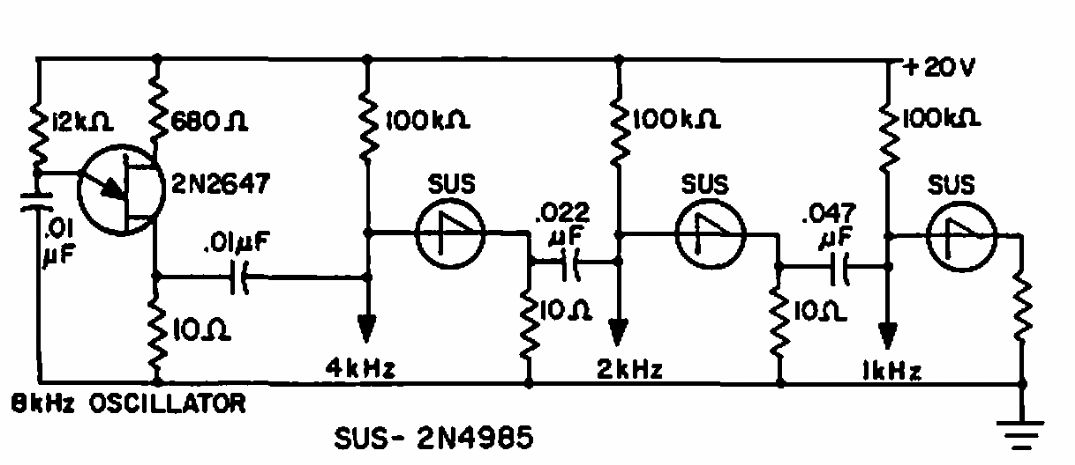

This frequency divider with SUS was found in General Electric's 1967 documentation. Similar configurations can be found elsewhere in this section and on this website.

| Clique na imagem para ampliar |
