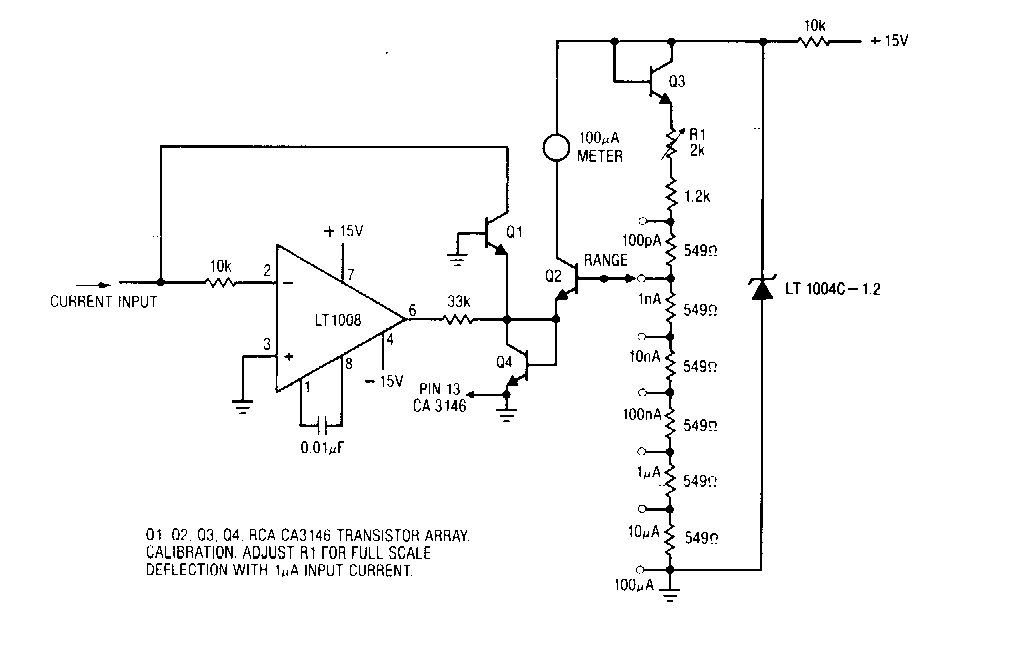

This Linear Technology circuit can measure currents from 100 pA to 100 uA. The circuit is from the 80's, using a component of the era. Transistors are general purpose types.
| Clique na imagem para ampliar |
Six Decade Current Meter (CB6191E)
- Details
- Written by: Newton C. Braga
