Frequency converter for precision voltage (CB6346E)

Details
Written by: Newton C. Braga

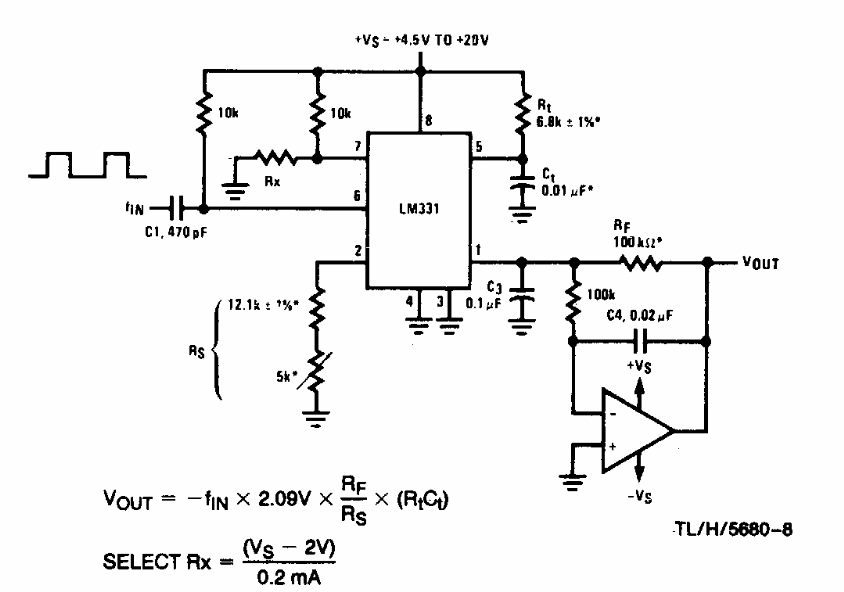

    This circuit has a maximum frequency of 10 kHz and a linearity better than 0.01%. The circuit is from an 80's documentation making use of integrated of the time.
