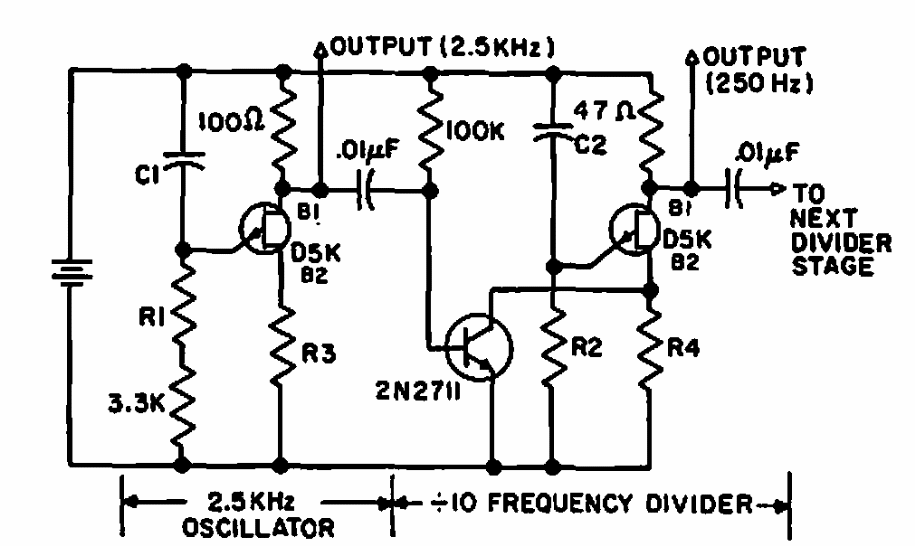

Divider by 10 (CB6898E)

Details
Written by: Newton C. Braga



     This circuit was found in a General Electric documentation from 1966. It uses discrete components of the time that can be replaced by modern equivalents.
