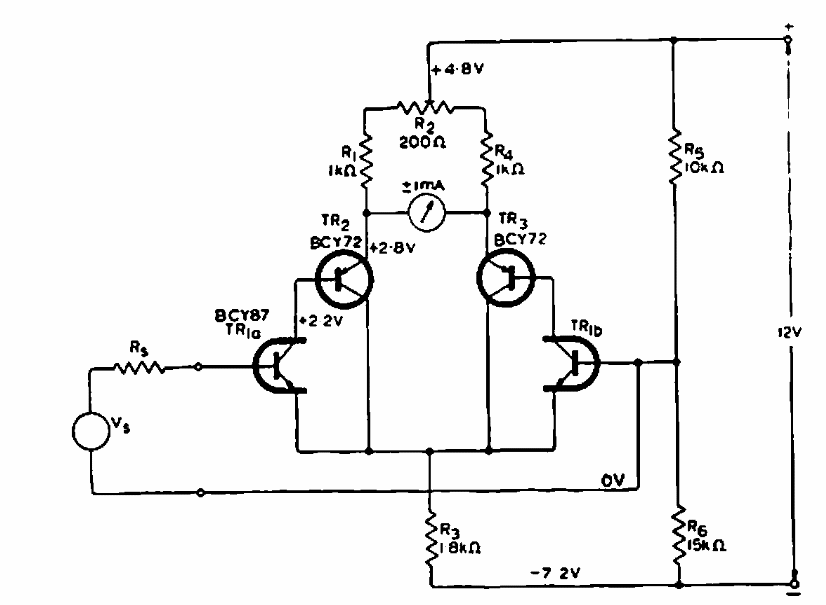

This circuit was found in a Philips documentation from 19678. The transistors are from the period with emphasis on the married pair. Modern equivalents can be used.
| Clique na imagem para ampliar |
Galvanometer amplifier CIR14692S (CB7353E)
