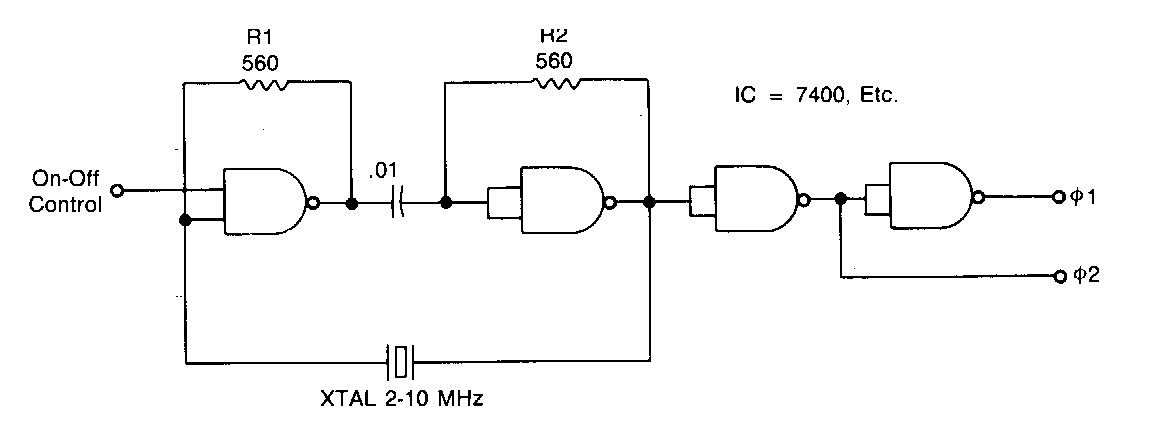

This oscillator can generate 2 to 10 MHz signals and was found in an American 1980s documentation. The circuit is stable and its supply voltage is 5 V.
| Clique na imagem para ampliar |
TTL Oscillator (CB6150E)
- Details
- Written by: Newton C. Braga
This oscillator can generate 2 to 10 MHz signals and was found in an American 1980s documentation. The circuit is stable and its supply voltage is 5 V.
