Audio FSK (CB6476E)

Details
Written by: Newton C. Braga

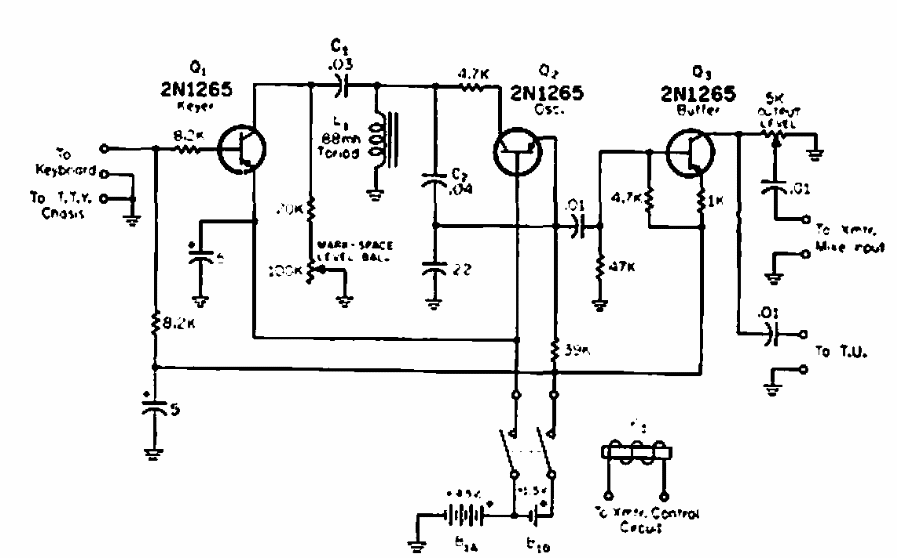

     Found on a 1964 CQ this circuit is intended for tone frequency change modulation (FSK) telegraphic transmissions. It operates with signals of 2.975 and 2.125 Hz.
