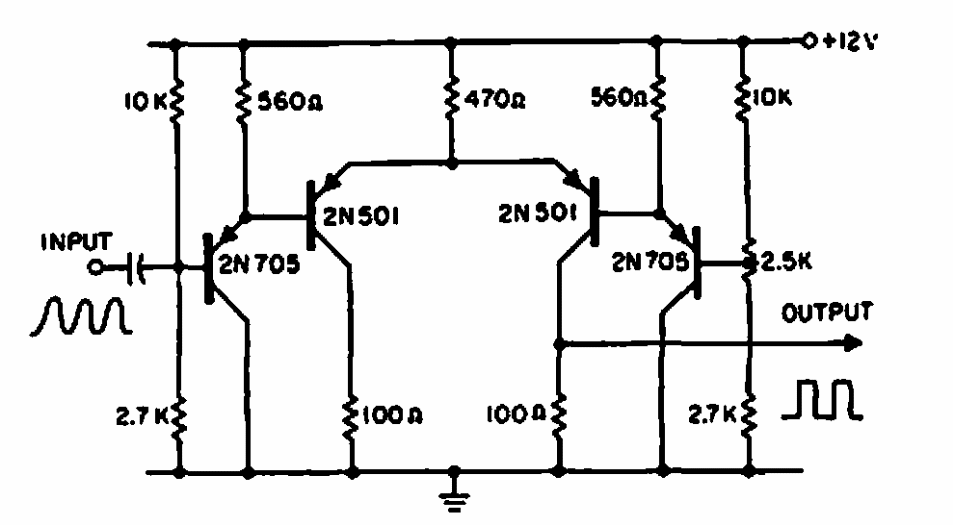

Found in a 1964 Electronic Design this circuit makes use of components of the era. The output is 2 V peak to peak and the input is 2 V. The maximum frequency depends on the employed components.
