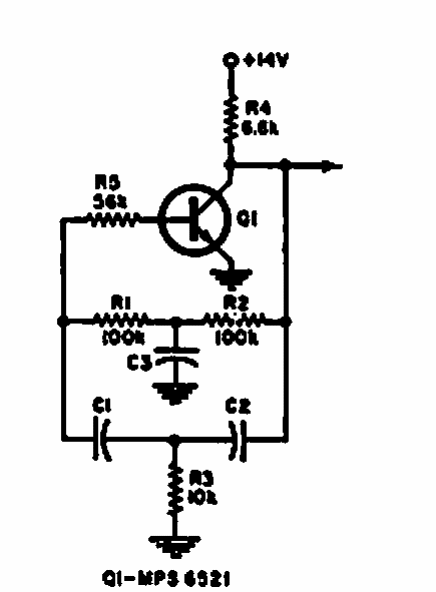

The signal from this circuit found in a 1968 Electronics World is sinusoidal and depends on the capacitors. These components can have values from 330 pF to 100 nF. The signal must be applied to an amplifier.
Double T Oscillator (CB6706E)
- Details
- Written by: Newton C. Braga
