Strobe (CB6751E)

Details
Written by: Newton C. Braga

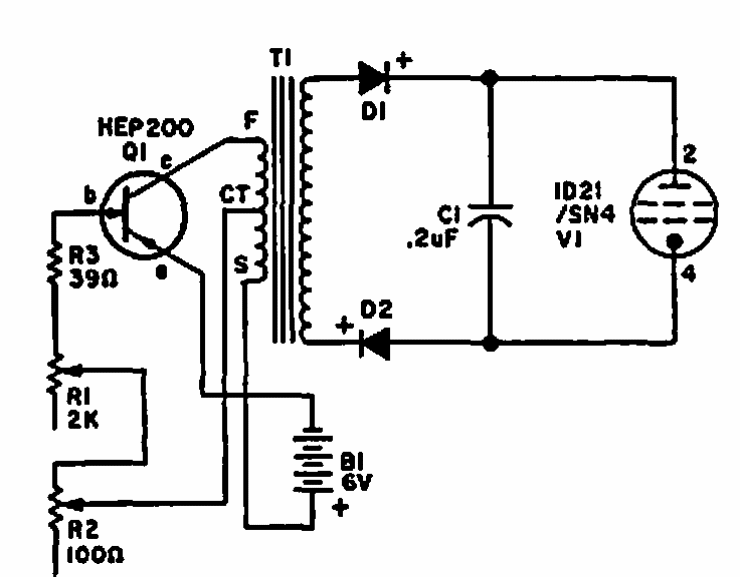

    This circuit makes use of a stroboscopic tube, a component that no longer exists today. The circuit is from the 70's and can be adapted to use mains voltage.




| Clique na imagem para ampliar |
