Volt Analog Ammeter (CB7352E)

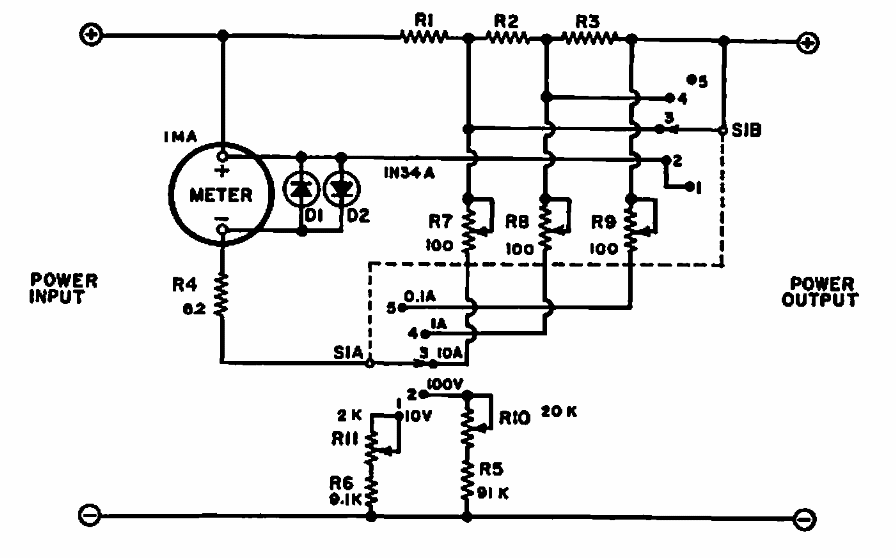

This analog volt-ammeter was found in an Electronics World of 1968. It makes use of a 0-1 mA analog milliammeter. Accuracy depends on the components.
