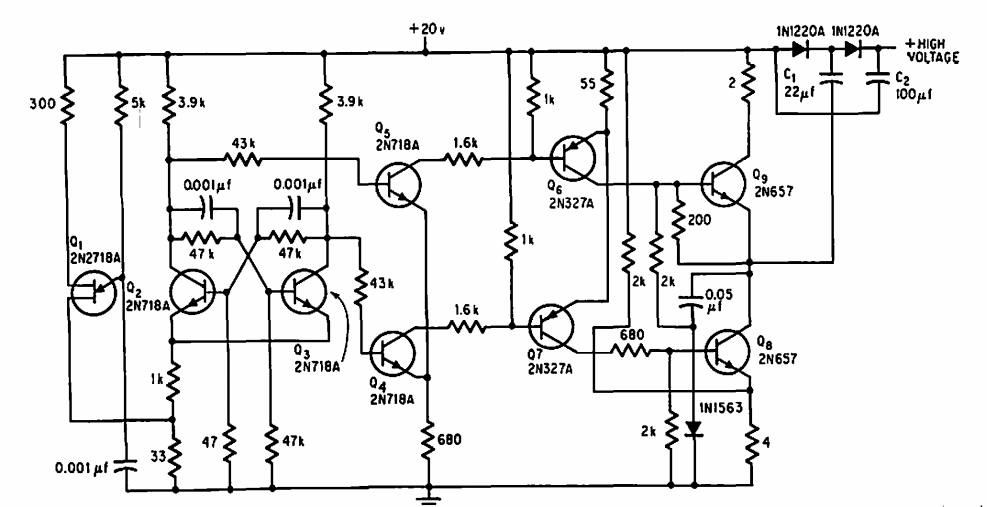

We found this circuit in a 1967 documentation. The circuit can be designed based on current transistors to generate higher voltages under low current. For the indicated circuit we have 35.5 V output with 20 V input and a maximum current of 80 mA.
| Clique na imagem para ampliar |
