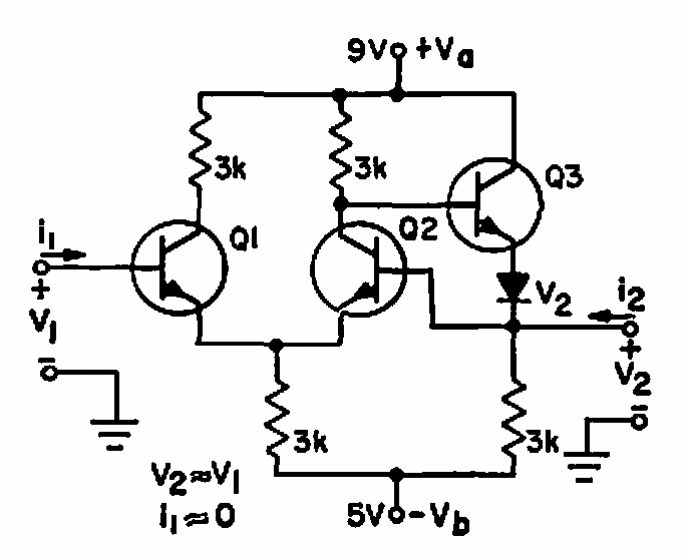

Unit gain (CB6727E)

This circuit was obtained from an Electronics World of 1969. General-purpose transistors can be used in this configuration.
