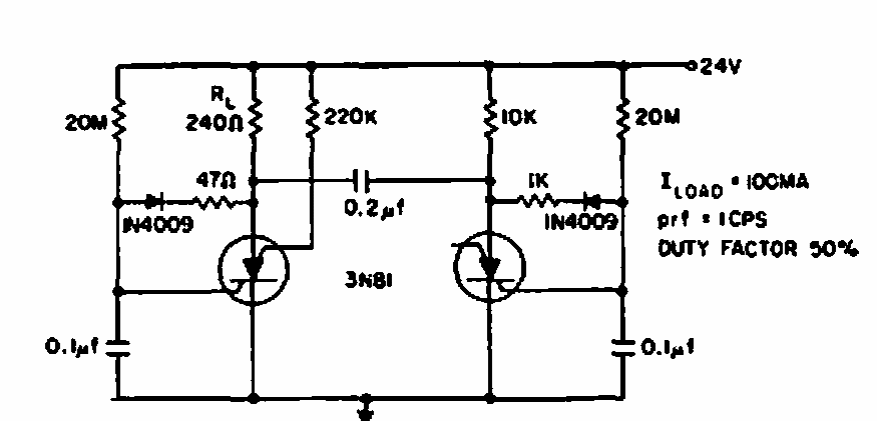

Found in a 1964 General Electric documentation, this circuit uses PUTs that are not currently common components. By changing the capacitors, the frequency can be changed.
| Clique na imagem para ampliar |
1 Hz Flasher (CB6796E)
- Details
- Written by: Newton C. Braga
