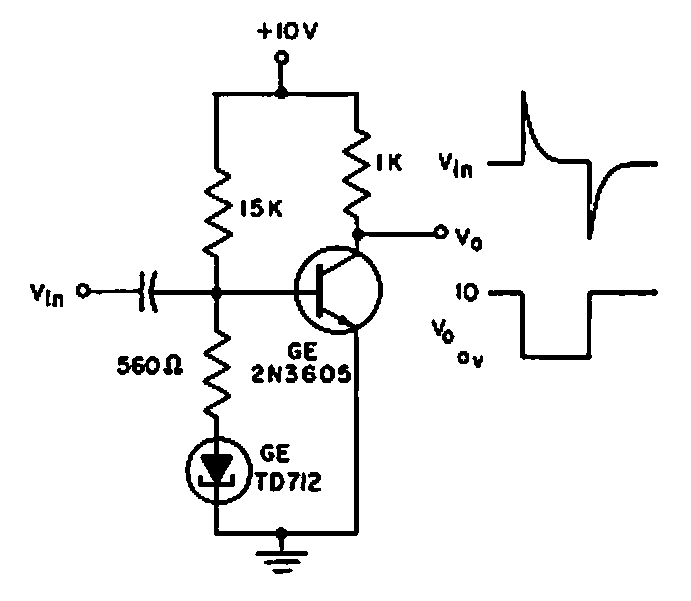

This circuit was found in a 1967 General Electric documentation. The circuit generates signals with the waveforms shown. The circuit can make use of modern equivalent transistors depending on the frequency of the signal.
| Clique na imagem para ampliar |
