Random neon lamps (CB7236E)

Details
Written by: Newton C. Braga

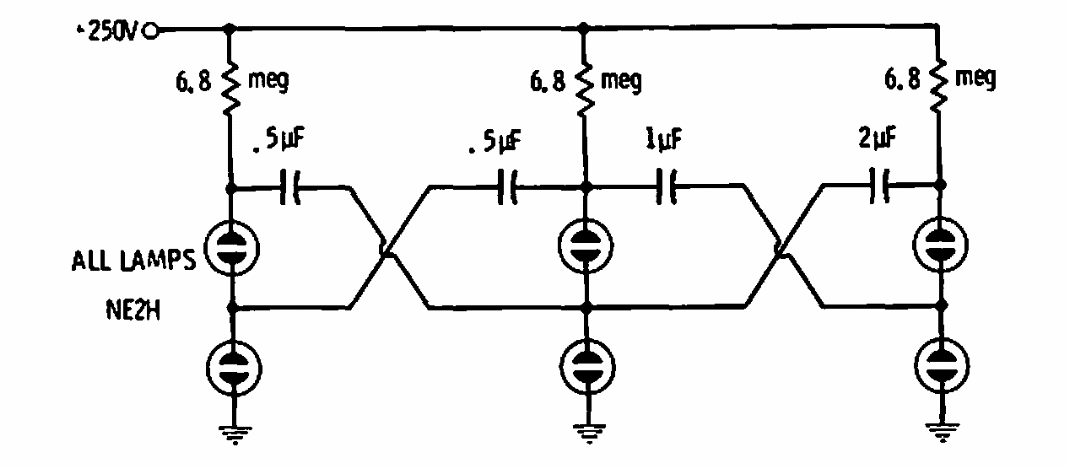

     This circuit for 6 lamps was found in old American documentation. The supply is of high voltage and the current drawn is very low.




| Clique na imagem para ampliar |
