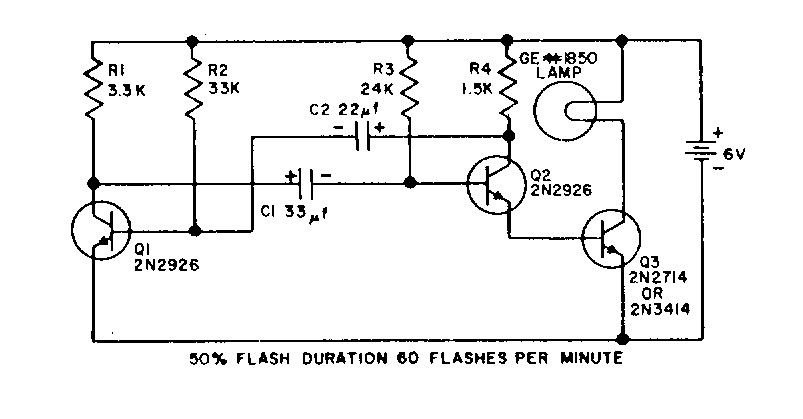

Transistor Flasher (CB6263E)

This low power, low voltage circuit was found in old General Electric documentation. Transistors may be modern equivalents.

| Clique na imagem para ampliar |
