Car Alarm (CB6773E)

Details
Written by: Newton C. Braga

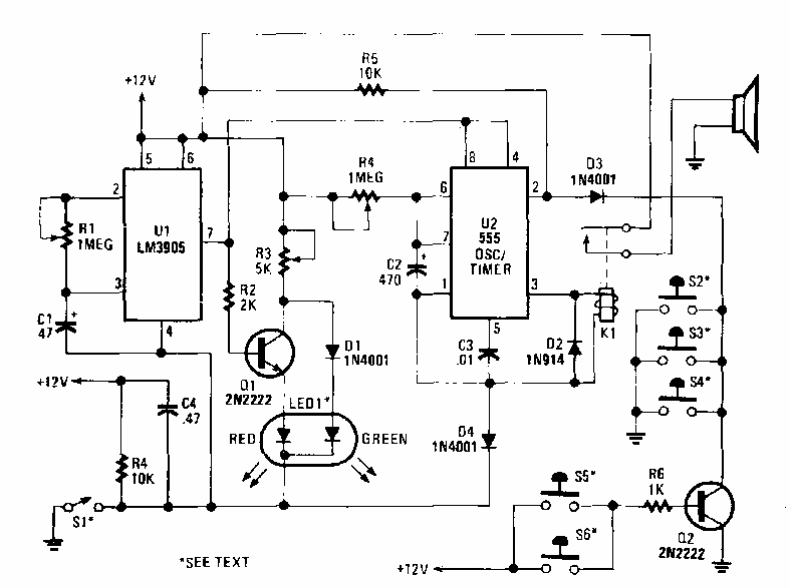

     Found in a Popular Electronics from the 90s, this circuit uses components that are still current. The circuit triggers the vehicle's horn. The sensors can be increased in number.
