Device On indicator (CB7014E)

Details
Written by: Newton C. Braga

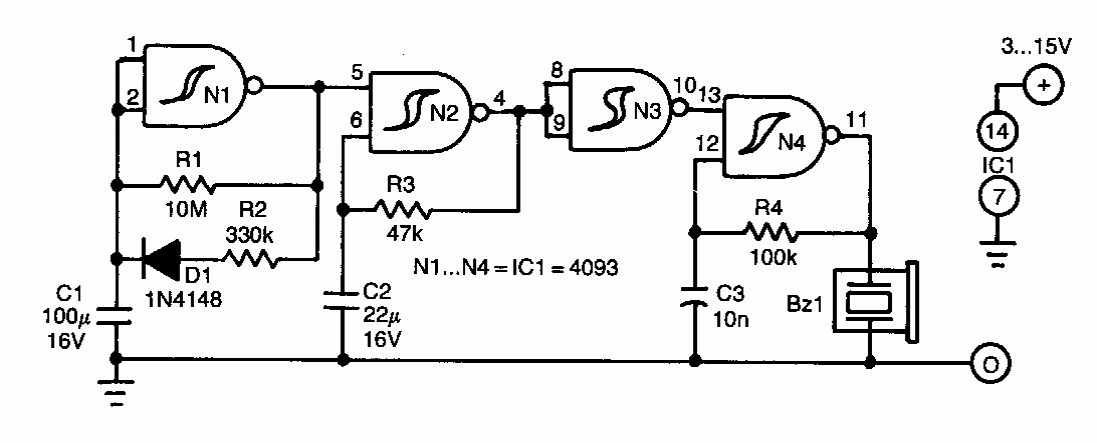

    Found in a European magazine from the 90s, this circuit emits beeps that are several seconds apart to indicate that a device is on. The transducer is a ceramic or crystal capsule.
