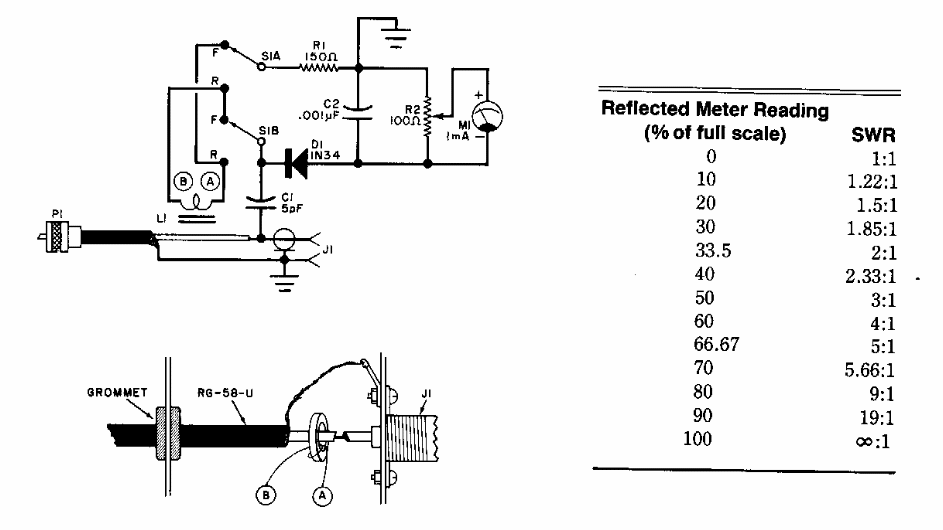

Standing wave ratio or SWR is an important measure of whether all power from a transmitter is being transferred to the antenna. This circuit from Popular Electronics operates with transmitters for the range of radio amateurs.
